Morphological Operations

You’ve created a binary mask with thresholding, but it’s noisy — small white specks where there shouldn’t be, or holes punched in objects that should be solid. Morphological operations are the cleanup crew. They reshape the white (foreground) regions in a binary image by expanding, shrinking, or refining them.

Structuring Elements (Kernels)

Before applying any morphological operation, you need a structuring element — a small shape that defines how the operation affects each pixel’s neighborhood. Think of it as a “stamp” that determines the pattern of expansion or shrinking.

Python

import cv2
import numpy as np

# Create a 5x5 rectangular kernel
rect = cv2.getStructuringElement(cv2.MORPH_RECT, (5, 5))

# Create a 5x5 elliptical kernel
ellipse = cv2.getStructuringElement(cv2.MORPH_ELLIPSE, (5, 5))

# Create a 5x5 cross-shaped kernel
cross = cv2.getStructuringElement(cv2.MORPH_CROSS, (5, 5))

MORPH_RECT (5x5):      MORPH_ELLIPSE (5x5):    MORPH_CROSS (5x5):
┌───────────────┐       ┌───────────────┐       ┌───────────────┐
│ 1  1  1  1  1 │       │ 0  0  1  0  0 │       │ 0  0  1  0  0 │
│ 1  1  1  1  1 │       │ 1  1  1  1  1 │       │ 0  0  1  0  0 │
│ 1  1  1  1  1 │       │ 1  1  1  1  1 │       │ 1  1  1  1  1 │
│ 1  1  1  1  1 │       │ 1  1  1  1  1 │       │ 0  0  1  0  0 │
│ 1  1  1  1  1 │       │ 0  0  1  0  0 │       │ 0  0  1  0  0 │
└───────────────┘       └───────────────┘       └───────────────┘

Kernel size matters: A larger kernel produces a more aggressive effect. A 3×3 kernel makes subtle changes; a 15×15 kernel makes dramatic ones. Start small.

The Two Primitives

Every morphological operation is built from two basic operations: erosion and dilation.

Erosion — Shrink the White

Erosion slides the kernel over the image. A pixel stays white only if ALL pixels under the kernel are white. If even one neighbor is black, the center pixel becomes black.

The result: white regions shrink, small white specks disappear, and thin connections break.

Python

# Create a binary image (e.g., from thresholding)
_, binary = cv2.threshold(gray, 127, 255, cv2.THRESH_BINARY)

kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (5, 5))

# Erode: white regions shrink
eroded = cv2.erode(binary, kernel, iterations=1)

Before erosion:          After erosion:
┌─────────────────┐      ┌─────────────────┐
│ . . . . . . . . │      │ . . . . . . . . │
│ . ■ ■ ■ ■ ■ . . │      │ . . ■ ■ ■ . . . │
│ . ■ ■ ■ ■ ■ . . │  →   │ . . ■ ■ ■ . . . │
│ . ■ ■ ■ ■ ■ . . │      │ . . ■ ■ ■ . . . │
│ . . . . . . . . │      │ . . . . . . . . │
│ . . . ■ . . . . │      │ . . . . . . . . │  ← noise removed!
└─────────────────┘      └─────────────────┘

Dilation — Grow the White

The opposite of erosion. A pixel becomes white if ANY pixel under the kernel is white. One white neighbor is enough.

The result: white regions expand, small holes fill in, and nearby regions merge.

Python

# Dilate: white regions grow
dilated = cv2.dilate(binary, kernel, iterations=1)

Before dilation:         After dilation:
┌─────────────────┐      ┌─────────────────┐
│ . . . . . . . . │      │ ■ ■ ■ ■ ■ ■ . . │
│ . ■ ■ ■ ■ ■ . . │      │ ■ ■ ■ ■ ■ ■ ■ . │
│ . ■ ■ . ■ ■ . . │  →   │ ■ ■ ■ ■ ■ ■ ■ . │  ← hole filled!
│ . ■ ■ ■ ■ ■ . . │      │ ■ ■ ■ ■ ■ ■ ■ . │
│ . . . . . . . . │      │ ■ ■ ■ ■ ■ ■ ■ . │
└─────────────────┘      └─────────────────┘

Note

Erosion removes noise but shrinks your objects. Dilation fills holes but expands your objects. Neither is perfect alone — that’s why compound operations exist.

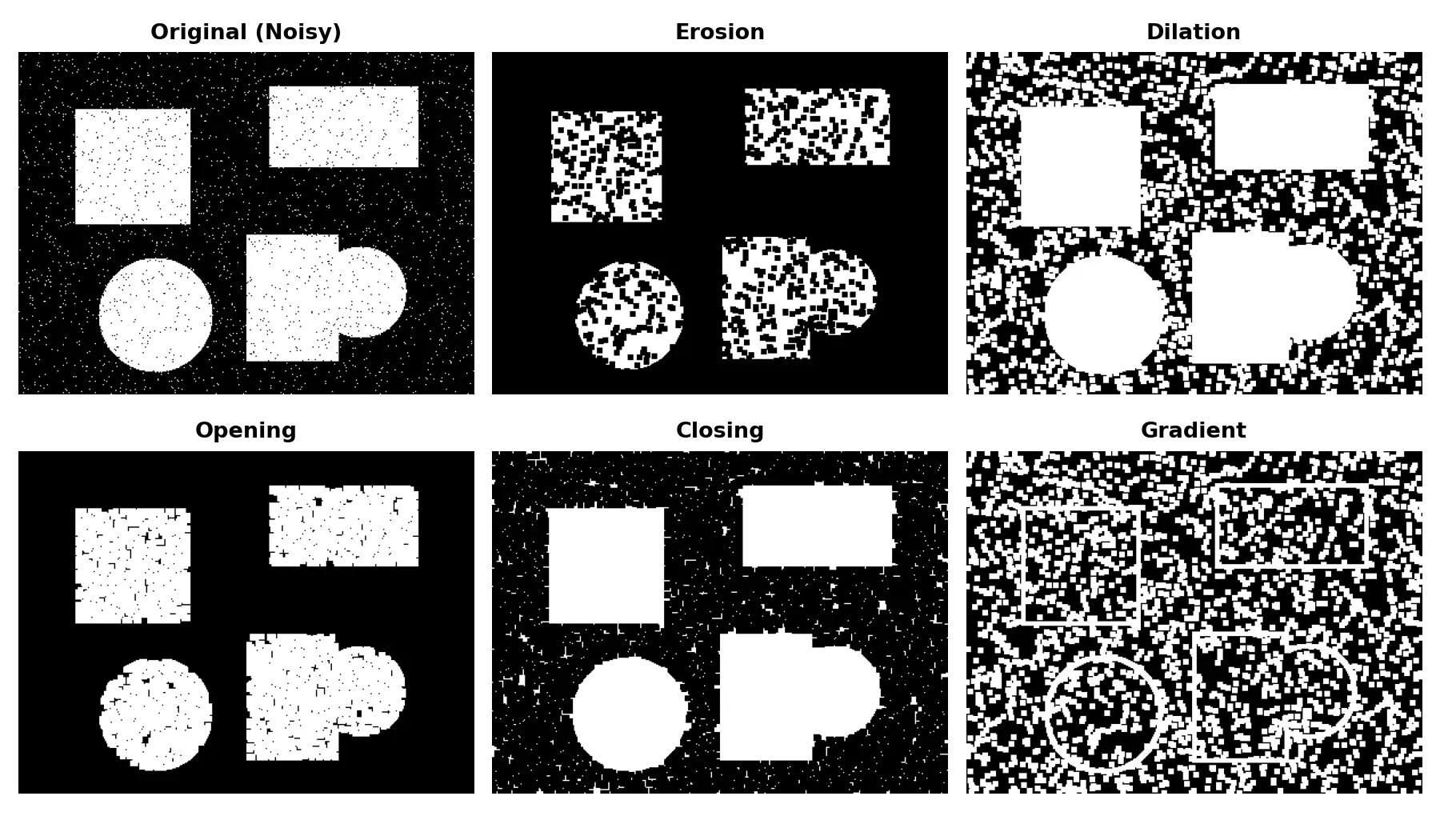

Compound Operations

cv2.morphologyEx() combines erosion and dilation in specific sequences to achieve more useful results:

Opening

Opening (Erode → Dilate)

Removes small white noise without significantly shrinking the main objects. Erosion kills the small specks, then dilation restores the surviving regions to approximately their original size.

Python

opened = cv2.morphologyEx(binary, cv2.MORPH_OPEN, kernel)

Use when: Your binary mask has small white dots/noise on the black background.

Closing

Closing (Dilate → Erode)

Fills small black holes inside white regions without significantly expanding them. Dilation fills the holes, then erosion shrinks the expanded boundaries back.

Python

closed = cv2.morphologyEx(binary, cv2.MORPH_CLOSE, kernel)

Use when: Your objects have small black holes or gaps that should be filled.

Gradient

Morphological Gradient (Dilation - Erosion)

Computes the difference between the dilated and eroded image, giving you the outline of each object.

Python

gradient = cv2.morphologyEx(binary, cv2.MORPH_GRADIENT, kernel)

Use when: You want object boundaries/outlines from a binary image.

Top/Black Hat

Top Hat & Black Hat

Less common but powerful for specific tasks:

• Top Hat (Original - Opening): Isolates bright spots smaller than the kernel.
• Black Hat (Closing - Original): Isolates dark spots smaller than the kernel.

Python

tophat = cv2.morphologyEx(gray, cv2.MORPH_TOPHAT, kernel)
blackhat = cv2.morphologyEx(gray, cv2.MORPH_BLACKHAT, kernel)

Use when: You need to extract small bright or dark features from an uneven background (e.g., text on a textured surface).

Tip

Start with Opening and Closing. They handle 90% of binary mask cleanup. Opening removes noise, Closing fills holes. Apply them in sequence for a clean result.

The Iterations Parameter

All morphological operations accept an iterations parameter that repeats the operation multiple times. This is equivalent to using a larger kernel but gives you finer control:

Python

# These two produce similar (not identical) results:
# Option A: Large kernel, 1 iteration
big_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (11, 11))
result_a = cv2.erode(binary, big_kernel, iterations=1)

# Option B: Small kernel, multiple iterations
small_kernel = cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))
result_b = cv2.erode(binary, small_kernel, iterations=3)

Practical Example: Cleaning a Thresholded Image

A typical preprocessing pipeline after thresholding:

Python

import cv2
import numpy as np

# 1. Load and threshold
img = cv2.imread("photo.jpg")
if img is None:
    raise FileNotFoundError("Could not load image!")
gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
_, binary = cv2.threshold(gray, 0, 255,
                          cv2.THRESH_BINARY + cv2.THRESH_OTSU)

# 2. Create a kernel
kernel = cv2.getStructuringElement(cv2.MORPH_ELLIPSE, (5, 5))

# 3. Opening: Remove small white noise
cleaned = cv2.morphologyEx(binary, cv2.MORPH_OPEN, kernel)

# 4. Closing: Fill small black holes in objects
cleaned = cv2.morphologyEx(cleaned, cv2.MORPH_CLOSE, kernel)

# 5. Display
cv2.imshow("Original Threshold", binary)
cv2.imshow("After Morphology", cleaned)
cv2.waitKey(0)
cv2.destroyAllWindows()

Caution

Order matters! Erosion followed by dilation (Opening) is NOT the same as dilation followed by erosion (Closing). They solve opposite problems. Apply Opening first (to clean noise), then Closing (to fill holes).

Summary Checklist

• Structuring elements: cv2.getStructuringElement() with MORPH_RECT, MORPH_ELLIPSE, or MORPH_CROSS. Size controls aggressiveness.
• Erosion (cv2.erode): Shrinks white regions, removes small white noise. All kernel pixels must be white.
• Dilation (cv2.dilate): Grows white regions, fills small holes. Any kernel pixel being white is enough.
• Opening (MORPH_OPEN): Erode → Dilate. Removes white noise. The go-to for cleaning noisy masks.
• Closing (MORPH_CLOSE): Dilate → Erode. Fills black holes. Use after Opening for a clean result.
• Gradient (MORPH_GRADIENT): Dilation - Erosion. Extracts object outlines.
• Iterations: Multiple passes of a small kernel ≈ one pass of a large kernel.
